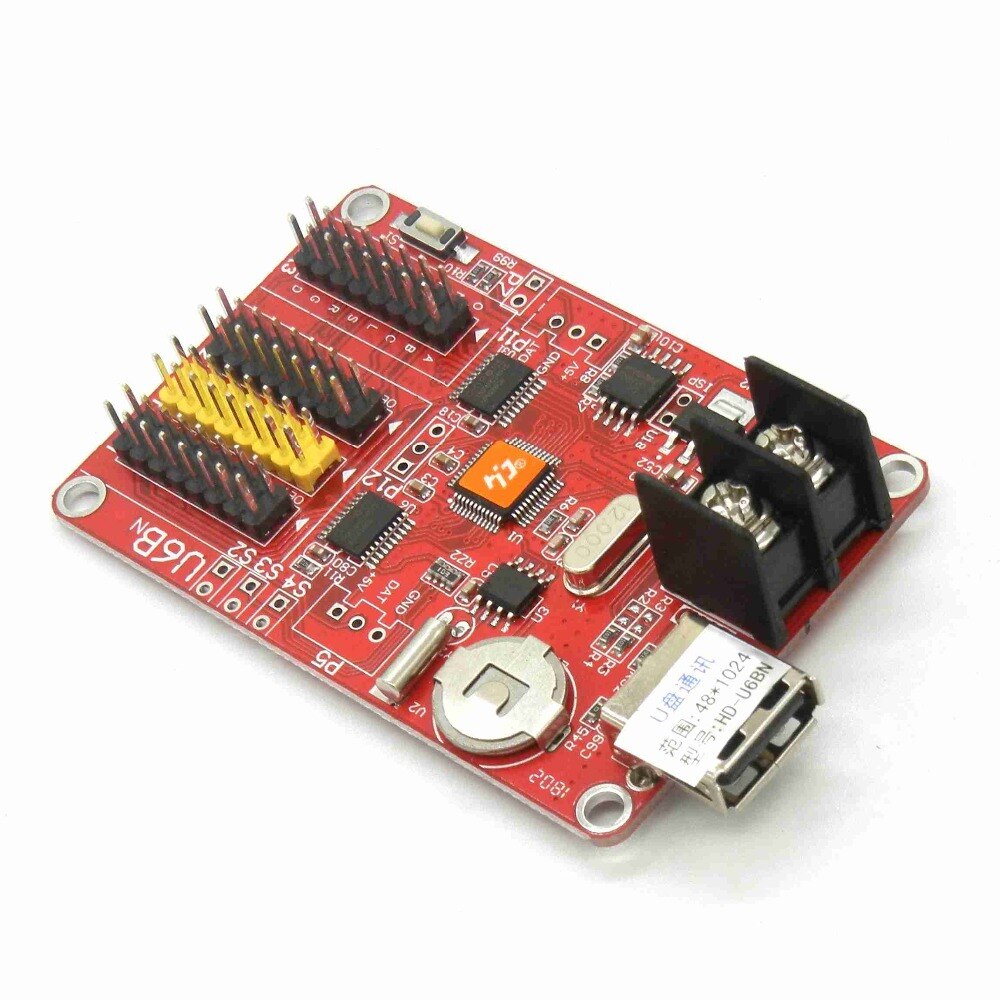

HD-U6BN LED Control Card with USB Port
Buy a complete range of single, double, and full-color display cards for signage, store, outdoor advertising, Indoor & Outdoor SMD Screens at a very cheap price. We are the main distributor of HD (Huidu Technology) controllers in Pakistan. We are the one and only store in Pakistan providing our customers with a wide range of electronic products and components at a very reasonable price at their doorstep.? You can buy HD-U6BN LED Control Card with USB Port anywhere from Pakistan online or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT)? ?in Lahore.
Overview of HD-U6BN LED Control Card with USB Port
For signage, store, outdoor advertising, and other information display, HUIDU technology launched? U-disk series control card which updates the display programs by the USB port. HD-U6BN is U-disk series control card, through the USB port to update the program. Cost-effective, simple software to operate, better and rich display effects, supporting a variety of monochrome displays.
- Types of control card Single Color/ Dual Color
- Control range Single color: Single color: 1024W*48H Dual color: 512W*48H Tricolor: 512W*24H
- Dual-color: 1024W * 48H 1024W * 24H
- Scan modes Static, 1/2? 1/3?,1/4? 1/5 ?1/6?1/8?1/16 common modes etc.
- Communication type U-Disk
- Power supply +4.2?5.5V
- Power consumption ?0.5W
- Work environment -20?–75?
- Installation dimension 65?W?*48 ?H??mm
- Application Range Used indoor-outdoor, semi-outdoor, Led Pharmacy Cross signs showing text, animation, time, clock etc.
- Languages Support All languages
- Flash Capacity: 4M Byte
- Communication Port: U-Disk to edit and update programs
- Signal Port: 3 HUB12, 1 HUB08
- Program Quantity: 1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)
- Area Quantity: 8 areas with separate zone, and separated special effects and border
- Display: Showing Text, Hypertext (GIF? Picture? Animation Character?SWF?Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness, Background, etc.
- Program Modes: Playing by Sequence or by Remoter or by Button
1. Support all languages(Software :HD2018)
2. Support 7 color effects and 64 colors Gray level (HD-U62/U63/U64)
3. Border functions of Program border, area border, and Custom
4. Add Countdown /Count up, Button Countdown / Count up
5. Add Text Rotation of 90??180?? 270? for display Text function of Hollow?Stroke etc
6. Add payment collection function
7. Updated program by U-disk
8. More than 200 types showing effects
9. Support Second develop SDK
10. More high brightness, more moving speed , more refresh
Time / Clock /Count Function
1. Support Digital Clock/ Dial Clock / Lunar Time/
2. Countdown /Count up, Button Countdown / Count up
3. The font?size?color and position can be set freely
4. Support multiple time zones
1. Used in Parking place?Scoring device?Calculate by piece.
2. From Minimum to Maximum, from Maximum to Minimum
Remote function?temperature?humidity?brightness etc. (If weld
sensor) . Remoter can select 1-999 Programs
Brightness setting by Custom?Automatic(weld sensor) ? by time period regulation
Automatic close /open display
Support close /open display by time automatically
