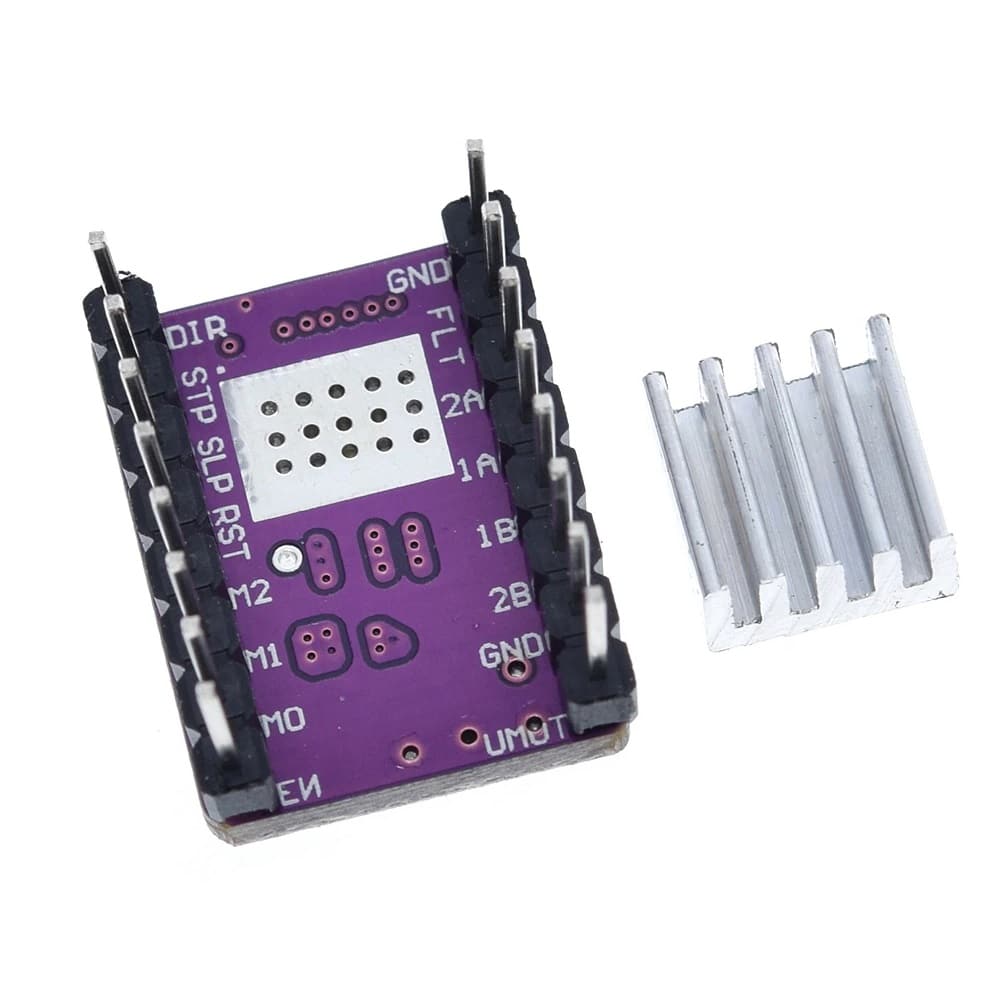

DRV8825 Stepper Motor Driver With Aluminum Heat Sink

Arduino

Key Features :

      • Model:DRV8825
      • Supply Voltage:8.2 42 VDC.
      • Current Capacity :2.2A max(24V).
      • Continuous current per phase:1.5 A.
      • Minimum Logic voltage:2.5V.
      • Maximum Logic Voltage:5V.
      • Microstep resolutions:full, 1/2, 1/4, 1/8, 1/16, and 1/32.
      • Dimensions: 15 x 20 mm.
      • Weight:4 gm.
      • Microstep resolutions:full, 1/2, 1/4, 1/8, 1/16, and 1/32.
      • Simple step and direction control interface
      • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
      • Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motors rated voltage to achieve higher step rates
      • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
      • 45V maximum supply voltage
      • Built-in regulator (no external logic voltage supply needed)
      • Can interface directly with 3.3V and 5V systems
      • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
      • Short-to-ground and shorted-load protection
      • 4-layer, 2oz copper PCB for improved heat dissipation
      • Exposed solderable ground pad below the driver IC on the bottom of the PCB

 315.00  325.00

Compare

DRV8825 Stepper Motor Driver With Aluminum Heat Sink

Buy a complete range of Arduino boards and their component at a very cheap price from all over Pakistan. We are the one and only store in Pakistan providing our customers with a wide range of electronic products and components at a very reasonable price at their doorstep. You can buy Arduino from all over Pakistan or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT) in Lahore.

Description:

TheDRV8825 stepper motor drivercarrier is a breakout board for TIs DRV8825 micro-stepping bipolarstepper motor driver. TheStepper Driver modulehas a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications. TheDRV8825Arduino stepper motor controllerfeatures adjustable current limiting, over-current, and over-temperature protection, and six micro-step resolutions (down to 1/32-step). It operates from 8.2 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features Of Drv8825 Stepper Motor Driver RAMPS Heat Sink 3D Printer Motor Driver:

  • Microstep resolutions:full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motors rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)
  • Can interface directly with 3.3V and 5V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • 4-layer, 2oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB

Specifications OfArduino DRV8825 Microstepping Bipolar Stepper Motor Controller:

  1. Model:DRV8825
  2. Supply Voltage:8.2 42 VDC.
  3. Current Capacity :2.2A max(24V).
  4. Continuous current per phase:1.5 A.
  5. Minimum Logic voltage:2.5V.
  6. Maximum Logic Voltage:5V.
  7. Microstep resolutions:full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  8. Dimensions: 15 x 20 mm.
  9. Weight:4 gm.
